Load Balancing Multiple WAN Connections

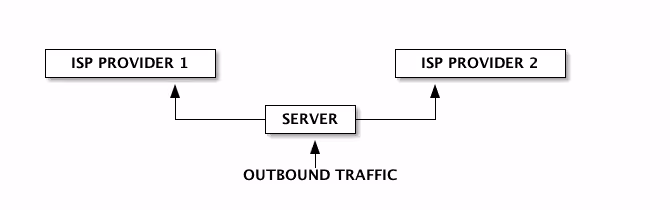

Load balancer linux

Introduction

If one ISP Provider bandwidth is not enough for your needs, you can have multiple lines and load balance between them on Linux. This documentation has been done on Debian and works like a charm :-).

It contains 3 network interfaces:

Is plugged in a special DMZ VLAN (eth0)
The second is plugged on a dedicated VLANS to ISP1 Provider (eth1)
The third is plugged on a dedicated VLANS to ISP2 Provider (eth2)

Internet traffic is load balanced between the two Internet accesses. In the current configuration the weight assigned to ISP1 is 3 and ISP2 1 (it means that 3 times more traffic passes through ISP1 than ISP2).

Network configuration

To do this, we are using the following configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# The loopback network interface
auto lo
iface lo inet loopback

# The primary network interface
allow-hotplug eth0
iface eth0 inet static
    address 172.16.0.51
    netmask 255.255.255.240
    broadcast 172.16.0.63
    post-up route add -net 192.168.0.0/16 gw 172.16.0.49
    post-up route add -net 172.16.0.0/16 gw 172.16.0.49
    post-up route add -net 10.0.0.0/8 gw 172.16.0.49

# ISP1
allow-hotplug eth1
iface eth1 inet static
    address 192.168.1.2
    netmask 255.255.255.0
    gateway 192.168.1.1

# ISP2
allow-hotplug eth2
iface eth2 inet static
    address 192.168.2.2
    netmask 255.255.255.0

Load Balancing configuration

Create the enable_balanced_routing script (/etc/network/if-up.d/enable_balanced_routing):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
#!/bin/bash

# Enable load balancing between ISP1 & ISP2

# Enable routing on eth2 up
test "${IFACE}" = 'eth2' || exit 0

function die()
{
    echo "$@" >&2
    exit 1
}

which ip >/dev/null 2>&1 || die "Command not found, please install it"
which ipcalc >/dev/null 2>&1 || die "Command not found, please install it"


LAN_IFACE='eth0'
LAN_IFACE_IP=$(ip a s ${LAN_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
LAN_NET_IP=$(ipcalc -n $(ip a s ${LAN_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')

INET1_IFACE='eth1'
INET1_IFACE_IP=$(ip a s ${INET1_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
INET1_NET_IP=$(ipcalc -n $(ip a s ${INET1_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')
INET1_GW='192.168.1.1'
INET1_WEIGHT=1

INET2_IFACE=${IFACE}
INET2_IFACE_IP=$(ip a s ${INET2_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
INET2_NET_IP=$(ipcalc -n $(ip a s ${INET2_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')
INET2_GW='192.168.2.1'
INET2_WEIGHT=3


# Create routes throught ours network in each tables
ip route add ${LAN_NET_IP} dev ${LAN_IFACE} table 100
ip route add ${INET1_NET_IP} dev ${INET1_IFACE} src ${INET1_IFACE_IP} table 100
ip route add ${INET2_NET_IP} dev ${INET2_IFACE} table 100
ip route add 127.0.0.0/8 dev lo table 100

ip route add ${LAN_NET_IP} dev ${LAN_IFACE} table 200
ip route add ${INET1_NET_IP} dev ${INET1_IFACE} table 200
ip route add ${INET2_NET_IP} dev ${INET2_IFACE} src ${INET2_IFACE_IP} table 200
ip route add 127.0.0.0/8 dev lo table 200

# Create a default route per table
ip route add default via ${INET1_GW} table 100
ip route add default via ${INET2_GW} table 200

# Assigning appropriate traffic from an interface to the corresponding table
ip rule add from ${INET1_IFACE_IP} table 100
ip rule add from ${INET2_IFACE_IP} table 200


# Force some specific routes if needed
# ip route add to x.x.x.x via ${INET1_GW} dev ${INET1_IFACE}
# ip route add to x.x.x.x via ${INET1_GW} dev ${INET1_IFACE}

# Replacing default route
ip route del default
ip route add default scope global nexthop via ${INET1_GW} dev ${INET1_IFACE} weight ${INET1_WEIGHT} nexthop via ${INET2_GW} dev ${INET2_IFACE} weight ${INET2_WEIGHT}
ip route flush cached

# If you're using ntop, you should restart it for new changes to take effect
# /etc/init.d/ntop restart &

Now let’s create the disable script (/etc/network/if-down.d/disable_balanced_routing):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#!/bin/bash

# Disable load balancing between ISP1 & ISP2

# Enable routing on eth2 down
test "${IFACE}" = 'eth2' || exit 0

which ip >/dev/null 2>&1 || die "Command not found, please install it"
which ipcalc >/dev/null 2>&1 || die "Command not found, please install it"

LAN_IFACE='eth0'
LAN_IFACE_IP=$(ip a s ${LAN_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
LAN_NET_IP=$(ipcalc -n $(ip a s ${LAN_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')

INET1_IFACE='eth1'
INET1_IFACE_IP=$(ip a s ${INET1_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
INET1_NET_IP=$(ipcalc -n $(ip a s ${INET1_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')
INET1_GW='192.168.1.1'

INET2_IFACE=${IFACE}
INET2_IFACE_IP=$(ip a s ${INET2_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
INET2_NET_IP=$(ipcalc -n $(ip a s ${INET2_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')
INET2_GW='192.168.2.1'


ip route del default
ip route add default via ${INET1_GW}
ip route flush cached

# Delete our network routes in each tables
ip route del ${LAN_NET_IP} dev ${LAN_IFACE} table 100
ip route del ${INET1_NET_IP} dev ${INET1_IFACE} src ${INET1_IFACE_IP} table 100
ip route del ${INET2_NET_IP} dev ${INET2_IFACE} table 100
ip route del 127.0.0.0/8 dev lo table 100
ip route del ${LAN_NET_IP} dev ${LAN_IFACE} table 200
ip route del ${INET1_NET_IP} dev ${INET1_IFACE} table 200
ip route del ${INET2_NET_IP} dev ${INET2_IFACE} src ${INET2_IFACE_IP} table 200
ip route del 127.0.0.0/8 dev lo table 200

# Delete default routes in tables
ip route del default via ${INET1_GW} table 100
ip route del default via ${INET2_GW} table 200

# Disable route traffic weight rules
ip rule del from ${INET1_IFACE_IP} table 100
ip rule del from ${INET2_IFACE_IP} table 200

# Delete specific routes
# ip route del to x.x.x.x via ${INET1_GW} dev ${INET1_IFACE}
# ip route del to x.x.x.x via ${INET1_GW} dev ${INET1_IFACE}

Add execute rights:

1
chmod ug+rx /etc/network/if-up.d/enable_balanced_routing /etc/network/if-down.d/disable_balanced_routing

Automatic failover

Since the ISP2 Internet access is unstable, we are using a self-made script to check it, and disable traffic through this interface if needed. This script runs in the background, and is launched by this init script:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
#!/bin/sh -e
### BEGIN INIT INFO
# Provides:          check_isp_connectivity
# Required-Start:    $network
# Required-Stop:     $network
# Default-Start:     3
# Default-Stop:      0 1 6
# Short-Description: Check freebox connectivity
# Description:       Check freebox connectivity
### END INIT INFO

NAME='check_isp_connectivity'
DAEMON='/usr/bin/check_isp_connectivity.sh'
PATH="/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin"
PIDFILE='/var/run/check_isp_connectivity.pid'

[ -x "${DAEMON}" ] || exit 0

. /lib/lsb/init-functions

case "$1" in
    start)
        echo "Starting check_isp_connectivity"
        start-stop-daemon --start --background --quiet --exec $DAEMON
        ;;

    stop)
        echo "Stopping check_isp_connectivity"
        start-stop-daemon --stop --quiet --pidfile ${PIDFILE}
        ;;

    status)
        status_of_proc "$DAEMON" "$NAME" && exit 0 || exit $?
        ;;

    *)
        echo "Usage: /etc/init.d/check_isp_connectivity {start|stop}"
        exit 1
        ;;
esac

It needs to get a daemon that will check the connectivity:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
#!/bin/bash

# Check that the ISP2 works fine, and, if this is not the case, suppress balanced routing
# TODO : avoid multiple variable declaration between /etc/network/if-up.d/enable_balanced_routing and this script

# Interval to check connectivity on ISPs
check_interval=5

IFACE='eth2'
HOST='www.google.fr'
LOGFILE="/var/log/$(basename ${0/.sh/.log})"
PIDFILE="/var/run/$(basename ${0/.sh/.pid})"

INET1_IFACE='eth1'
INET1_IFACE_IP=$(ip a s ${INET1_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
INET1_NET_IP=$(ipcalc -n $(ip a s ${INET1_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')
INET1_GW='192.168.1.1'
INET1_WEIGHT=1

INET2_IFACE=${IFACE}
INET2_IFACE_IP=$(ip a s ${INET2_IFACE} | awk '($1=="inet") {gsub("/.*", "", $2) ; print $2}')
INET2_NET_IP=$(ipcalc -n $(ip a s ${INET2_IFACE} | awk '($1=="inet") {print $2}') | awk '($1=="Network:") {print $2}')
INET2_GW='192.168.2.1'
INET2_WEIGHT=3

DO_RUN=true

# We catch SIGTERM signal to end this script properly
trap do_stop  15

function die()
{
    echo "${@}" >&2
    echo "$(LANG=C date "+%h %d %H:%M:%S") : ${@}" >> ${LOGFILE}
    exit 1
}

function log()
{
            echo "$(LANG=C date "+%h %d %H:%M:%S") : ${@}" >> ${LOGFILE}
}

function test_interface()
{
    local test_ip=$(host -t A ${HOST} | awk '($2=="has" && $3=="address") {print $4}' | head -n 1)

    # if balanced routing is disabled
    if ! $(ip ro show | grep -Eq "nexthop via ${INET2_GW}"); then
        ip route add to ${test_ip} via ${INET2_GW} dev ${INET2_IFACE}
        if $(ping -W 1 -q -c 3 -I ${IFACE} ${test_ip} > /dev/null 2>&1); then
            enable_balanced_routing
        else
            log "We cannot ping ${test_ip} and balanced routing is already disabled"
        fi
        ip route del to ${test_ip} via ${INET2_GW} dev ${INET2_IFACE}

    # if balanced routing is enabled, and we cannot ping our test IP
    elif ! $(ping -W 1 -q -c 3 -I ${IFACE} ${test_ip} > /dev/null 2>&1); then
            log "We cannot ping ${test_ip}. Doing a second check just to be sure ..."
            # We double check if we cannot join our test IP
            if $(ping -W 1 -q -c 3 -I ${IFACE} ${test_ip} > /dev/null 2>&1); then
                log "It's okay, I can ping ${test_ip} during the second test"
            else
                disable_balanced_routing
            fi
    fi
}


function disable_balanced_routing()
{
    log "Disabling balanced routing"
    ip route del default
    ip route add default via ${INET1_GW}
    ip route flush cached
}

function enable_balanced_routing()
{
    log "Enabling balanced routing"
    ip route del default
    ip route add default scope global nexthop via ${INET1_GW} dev ${INET1_IFACE} weight ${INET1_WEIGHT} nexthop via ${INET2_GW} dev ${INET2_IFACE} weight ${INET2_WEIGHT}
    ip route flush cached
}

function pid_managment()
{
    local my_pid=$$
    local old_pid

    if [ -f ${PIDFILE} ]; then
        old_pid=$(<${PIDFILE})
        ps --no-headers --pid ${old_pid} >/dev/null && die "Deamon is already up and running"
    fi

    echo ${my_pid} > ${PIDFILE}
}

function do_stop()
{
    log "${0} is stopping..."
    DO_RUN=false
}

log "${0} is starting..."
pid_managment

# Launch check every x seconds
while ${DO_RUN}; do
    if $(ip link show ${IFACE} | grep -q UP); then
        test_interface
    fi

    sleep $check_interval
done

log "${0} is stopped"

Then we’ll set good rights and auto start on boot:

1
2
chmod 754 /usr/bin/check_isp_connectivity.sh /etc/init.d/check_isp_connectivity
update-rc.d defaults check_isp_connectivity

Resources

Load_balancer_linux.txt

Edit this page

Last updated 20 Feb 2012, 18:13 +0200. history

Adding Red Hat DVD as a Repository

Tmpfs: Mounting a RAM filesystem on Solaris

Load Balancing Multiple WAN Connections

Introduction link

Network configuration link

Load Balancing configuration link

Automatic failover link

Resources link

Introduction

Network configuration

Load Balancing configuration

Automatic failover

Resources
